1. Universal use as milling machines and drill press 2. Easily shiftable gear drive ensures power transmission without losses 3. Gear box spindle drive,with automatic feeding of spindle and micro feeding. 4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill 5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines 6. Milling table swivels horizontally, including scale 7. Dovetail guides on all 3 axes 8. Head, table height can be adjusted through gear rack 9. Forward/reverse setting through motor switch
1. Flexible, multi-function of milling, drilling and tapping . 2. Easy to operate, convenient maintenance 3. High speed milling head , high precision, swivel 90°, flexible processing. 4. Cast iron after artificial aging treatment,high precision,long service life 5. Hardening treatment. 6. Equipped with manual lubricating device, the lubrication on the lead screw and guideway 7. X, Y, Z-axis auto-feeding.
1.X axis is automatic feed through gear box 2.Spindle box is gear driven, quill can fine feed manually. 3.Ram is movable forward and backward, and swivel 180 degrees. 4.Three axis hardened treatment. 5.Mill head can swivel ±45 degree 6.Both vertical and horizontal mill head

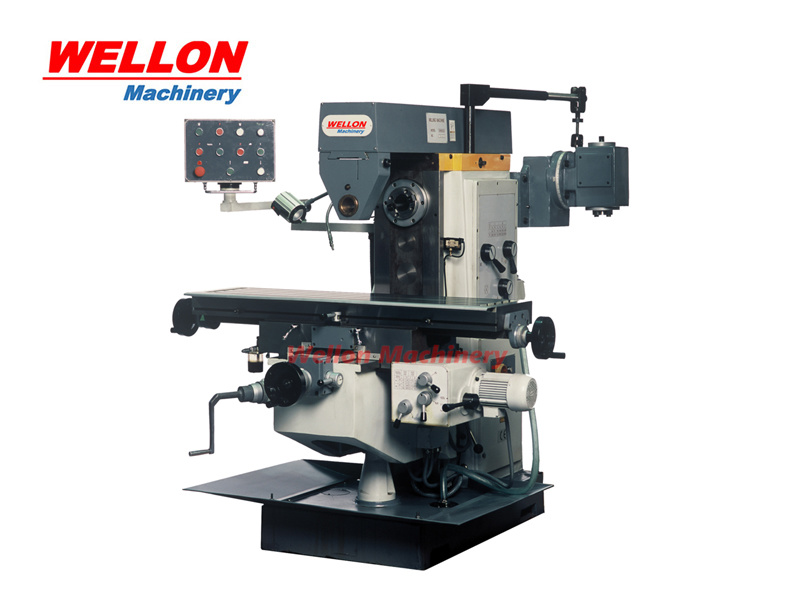

Milling machine equipped with vertical head and horizontal spindle Tool mount taper ISO 40 Milling machine with working feeds in X and Y axes, and quick setting feed in Z axis Vertical head moved out spindle Power feed within 3 ranges and possibility of automatic threading Vertical swivel head within 0~90 degree Extended and swivel upper arm
1.Rectangular table guideways with high stability. 2.Hardened and ground table surface. 3.Headstock swivels ±45°,vertical milling spindle auto–feeding. 4.Automatic feeds on X,Y axes,motorized lifting and lowering of table on axis.
1.Vertical mill head spindle automatic feeding 2.With tapping function 3.Vertical mill head can swivel ±90 degree 4.Spindle quill with fine feed by manually 5.X Y axis with auto power feed 6.Z axis motorized lifting 7.Both vertical and horizontal mill head

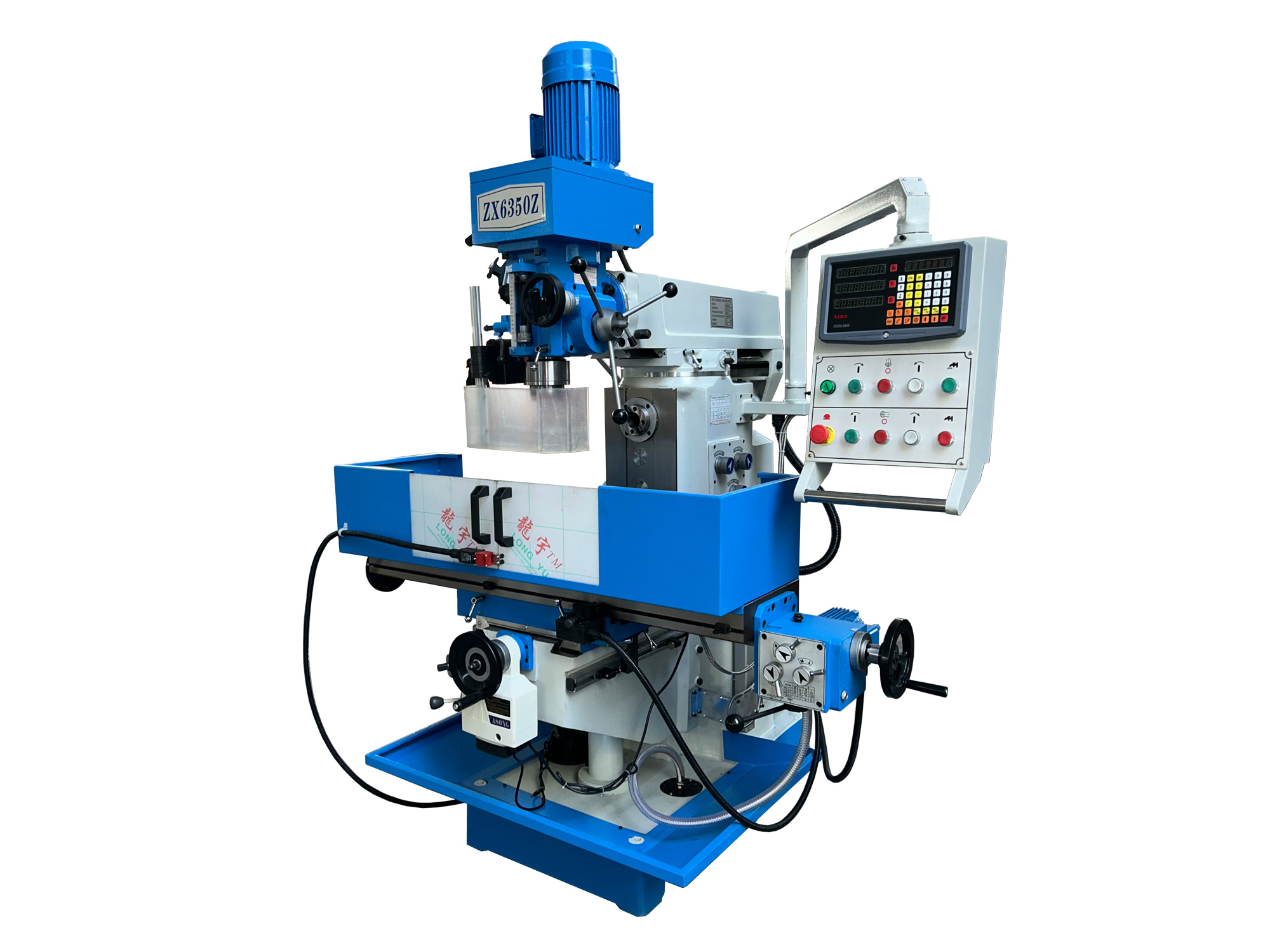

ZX6350ZB drilling and milling machine can realize functions of vertical and horizontal milling. X, Y, Z axis with automatic feeding. Work table can swivel 45 degree left and right. The vertical milling head can both swivel 45 degrees from left to right side.
1. Use as milling machines and drill press 2. Easily shift able gear drive ensures power transmission without losses 3. With gear driven spindle 4. Head swivels into the horizontal level on both sided. 5. Easy activation of manual micro-feed for the spindle quill
1. Use as milling machines and drill press 2. Easily shift able gear drive ensures power transmission without losses 3. With gear spindle drive 4. Head swivels into the horizontal level on both sided. 5. Easy activation of manual micro-feed for the spindle quill 6. With horizontal milling spindle
Milling head with auto feeding Use as milling machines and drill press Easily shift able gear drive ensures power transmission without losses With gear spindle drive Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
1. Use as milling machines and drill press 2. Easily shiftable gear drive high low two steps spindle speed. 3. Variable spindle speed control. 4. Head swivels into the horizontal level on both sided 90 degree. 5. Manual fine-feed for the spindle quill 6. With horizontal milling spindle. 7. Wotktable can be swivel ±45 degree.
The machine is suitable for machinery, light industry, instrument, motor, electrical appliance and moulds, and widely used in milling plane, inclined plane and slot on miscellaneous work pieces of various metals by means of cylindrical or angle milling cutter in either down-milling or up-milling. It is characterized by stabilizing precision, sensitive response, light in weight, power feed and rapid adjustment in longitudinal, cross, vertical traverse. Vertical milling machine is suitable for milling various metals. It can mill plane, inclined plane, groove, keyway and also can drill and bore with special equipment. The machine introduces ball screw drive and higher spindle speed. Every kind of vertical milling machine can be equipped with digital display.
The machine is suitable for machinery, light industry, instrument, motor, electrical appliance and moulds, and widely used in milling plane, inclined plane and slot on miscellaneous work pieces of various metals by means of cylindrical or angle milling cutter in either down-milling or up-milling. It is characterized by stabilizing precision, sensitive response, light in weight, power feed and rapid adjustment in longitudinal, cross, vertical traverse. Equipped with various accessories, it can be applicable to versatile processing. In addition to all the principal features of horizontal milling machines working table can be swiveled up to 45 degree. Equipped with dividing head, it can be used for various spirals and especial surfaces such as spur and helical cylindrical gears and flutes of twist drills. According to customers require, every kind of milling machine can be equipped with digital display.
1. CAST IRON OF HIGH RIGIDITY. 2. GUIDEWAYS QUENCHED AND FINE GRINDED. 3. DIFFERENT VOLTAGES REQUESTS ACCEPTABLE. 4. DIFFERENT COLORS REQUESTS ACCEPTABLE. 5. 3 AXIS AUTOMATIC FEEDING DRIVEN BY AC SERVO MOTOR
1.Our proprietary designs and exacting manufacturing specifications insure that every machine we sell meets or exceeds our customers' needs and expectations. 2. The foundation of our commitment to deliver top-quality machines to our customers is our 100% inspection Quality Control process using state-of-the-art optical measurement systems to support both manufacturing and product design. 3. We believe that this is the only way to ensure that we deliver the finest products to customers who demand precise, reliable machines in their applications.
