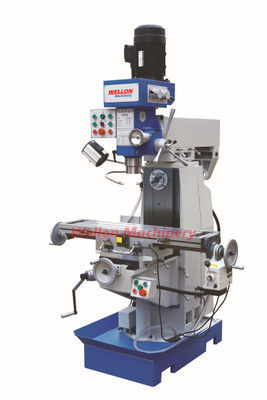

ZX7550WF

1. Use as milling machines and drill press
2. Easily shift able gear drive ensures power transmission without losses
3. With gear spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5. Work table swivel 45 degree
  • ZX7550WF
  • Wellon
Availability:
Quantity:
Inquire Add to Basket

Product Description

Model

ZX7550WF

Max.drilling dia  (mm)

50

Max.horizontal milling dia  (mm)

100

Max.vertical milling dia (mm)

25

Max.boring dia  (mm)

120

Max.tapping dia

M16

Distance.spindle to table surface (mm)

50-350

Spindle speeds range (r.p.m)

115-1750 (V)
60-1350(H)

Spindle travel

120

Table size  (mm)

1000×240

Table travel  (mm)

600×210

Overall dimensions  (mm)

1280×1100×2080

Motor  (Kw)

0.85/1.5(V) 2.2(H)

N.W/G.W (Kg)

850/1000

Standard Accessories

Drill chuck

Reduction sleeve

Collet chuck kits

Machine vice

Draw bar,

X axis auto power feed

Horizontal milling arbor(only for model ZX7550CW)

Coolant system

Work lamp

Oil tray

Spanners

Optional Accessories

Diving head

Rotary table

DRO

Clamping kit
