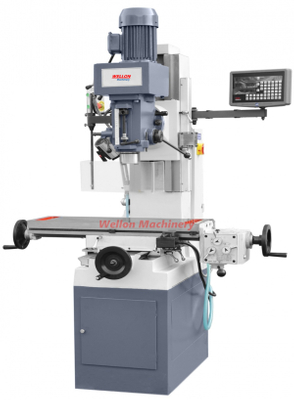

ZX50Z

1. Universal use as milling machines and drill press
2. Easily shiftable gear drive ensures power transmission without losses
3. Gear box spindle drive,with automatic feeding of spindle and micro feeding.
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axes
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch

  • ZX50Z
  • Wellon
Quantity:

Product Description

Model

ZX50Z

Maximal drilling capacity

40 (ISO)

Maximal milling width

80 mm

Maximal milling capacity

25 mm

Number of spindle speeds

8

Spindle speed range

230 - 1825 rpm (50 Hz)

176 - 2190 rpm (60 Hz)

Spindle distance from column surface

320 mm

Spindle distance from table

30 - 350 mm

Spindle travel

120 mm

Table travel

360 x 210 mm

Table size

800 x 240 mm

Motor

1.5 kW

Dimensions

1280 x 970 x 1650 mm

Standard Accessories

Collet chuck kits

Drill chuck

Reduction Sleeve

Draw bar

Work lamp

Coolant system

Operate tools.

Optional Accessories

2 Axis DRO

Machine vice

X axis power feed

Work table swivel
