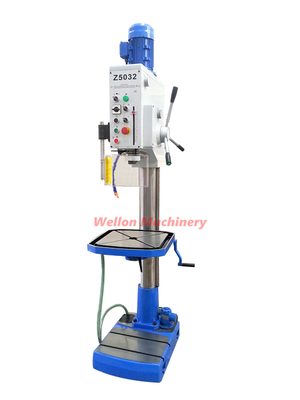

Z5032

Drilling,tapping,boring,reaming
Strong column,Vice table,Gear drive,lower noise
Heavy-duty tapered roller bearing spindle,Positive spindle lock

  • Z5032
  • Wellon
Quantity:

Product Description

Item

Parameter

 Max.drilling capacity

 35mm

 Max.tapping capacity

 22/20mm

 Spindle taper

 MT4

 Worktable size

 460x460mm

 Dimensions of base

 620x540mm

 Spindle travel

 160mm

 Distance spindle center to column surface

 300mm

 Spindle nose to worktable

 720mm

 Spindle nose to base

 1200mm

 Column diameter

 125mm

 Spindle speeds range(optional)

 12steps:75~3200rmp

 Spindle power down feed

 0.06/0.12/0.18 mm/r

 Motor

 1.5/1.1kw

 NW/G.W

 350/400KG

 Packing size(LxWxH)

 2200×540×750mm

Standard Accessories

Draw bar

Adapter

Taper shank for drilling chuck

Drilling chuck

Arbor

T slot bolt

Washer

Nut

Tilted wedge

Spanner

Oil gun

Optional Accessories

Cooling system

vices
