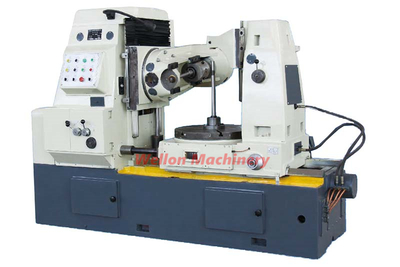

Y3180E

1. The machine is suitable for large batch and single production of cylindrical spur and helical gears, worm gears and sprocket.
2. The machine is characterized by good rigidity, high strength, high working accuracy, and easy in operation and maintain.
3. The machine can be operated not only with forward and backward cutting, but also with axial or radial feed.

  • Y3180E
  • WELLON
Quantity:

Product Description

Item

Y3180E

Max workpiece dia

with rear column:550m


without rear column:800mm

Max module

10mm

Max workpiece width

300mm

Min number of teeth of workpiece

12

Tool head max vertical travel

350mm

Distance from hob cutter center to worktable face

max585mm


min235mm

Spindel taper

morse5

Hob cutter

max dia 180mm


max length 180mm

Arbor dia

22 27 32 40

Distance from hob cutter axes center to worktable axes center

max 550mm


min 50mm

Worktable hydraulic move distance

50mm

Worktable aperture

80mm

Worktable dia

650mm

Spindle rotate step,range

8step   40-200r/min

Worktable move speed

less than 500m/min

Main motor power and rotate speed

N=5.5KW 1500r/min

Machine weight

5500kg

Machine size

2752X1490X1870mm

Standard Accessories

Name

Code

specification

Qty

Remark

Main machine and parts



1

case

Standard change gears



1 set


Tools for installation and setup



yes


Technical documents





Operation manual(I)



1

Mechanical and hydraulic

Operation manual(II)



1

electric

Certificate of conformity



1


Packing list



1


Catalogue of parts



1


Tools and Accessories





Foundation bolts



6 pcs
