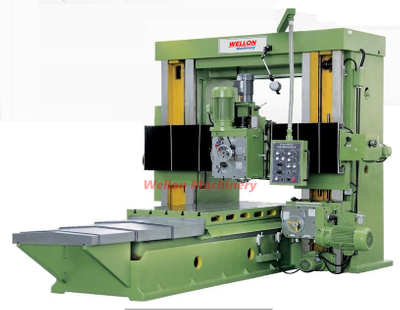

XQ2014-20 XQ2014-30 XQ2016-30

XQ20 series light gantry milling machines are high-tech products with high working efficiency.The core technique of it originates from Taiwan,the scientific & logical design of the structure and the adoption of the advanced function unit can realize strong cutting function and safe & reliable movement and long working life.
1.Heat-treatment technical & mechanical lubrication are adopted on the guideway of the  machine body to reduce friction & prolong the working life of the machine.
2.Stepless speed change of table.
3.Rigid machine bed/beam/column ensure stability of the machine in strong cutting.
4.Milling head can move vertically or swivel ±30°.
It is used in machine work,moulding and some other industries,especially the processing of plane/end face/inclined plane/T slot/ combined guideway of large/medium/small machine parts.

  • XQ2014-20 XQ2014-30 XQ2016-30
  • Wellon
Quantity:

Product Description

model

XQ20 SERIES LIGHT GANTRY MILLING MACHINES


XQ2014-20

XQ2014-30

XQ2016-30

Table size mm

1000 x 2000

1000 x 3000

1200 x 3000

Table feeding speed mm/min

0-570

0-820

Rapid feeding speed of table mm/min

2500

Power of table motor kw

4

5.5

Max.table load kg

2000

3000

5000

Max.allowable dimensions of the workpiece

Length mm

2000

3000


Width mm

1400

1600


Height mm

800

Dis.between columns mm

1450

1620

Power of spindle motor kw

7.5

Spindle taper

IS050

Spindle speedr/min

100-6856 Steps

Spindle swivel angle

± 30°

Vertical spindle nose to table surface mm

0-800

Horizontal spindle nose to table surface

100

Recommend dia.of tools mm

φ160

External dimensions

Length mm

6080

8080

8080


Width mm

2630

2630

3230


Height mm

2800

2800

3000
