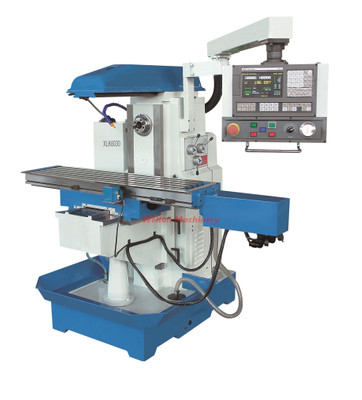

XLK6030

1. CAST IRON OF HIGH RIGIDITY.
2. GUIDEWAYS QUENCHED AND FINE GRINDED.
3. BRAND OF CNC CONTROLLER CAN BE SELECTED.
4. DIFFERENT VOLTAGES REQUESTS ACCEPTABLE.
5. DIFFERENT COLORS REQUESTS ACCEPTABLE.
6. OEM SERVICE PROVIDED

  • XLK6030
  • Wellon
Quantity:

Product Description

Specification

Unit

XLK6030

Table size

mm

1370X300

Table Travel (X/Y/Z)

mm

820X300X400

Spindle hole taper

---

7:24 ISO40

Table rapid feed speed(X/Y/Z)

mm/min

4000/4000/3000

T-slots(No./Width/Pitch)

mm

3/14/80

Spindle speed range

r/min

12 steps 35-1500

Distance between spindle and table surface

mm

75-475

Distance between spindle axis and ram surface

mm

155

Main motor power

kw

3

Torque of X/Y/Z axis AC servo motor

N.m

7.7/7.7/15

Overall size

mm

1850X1680X1730

Net weight

kg

1800

Standard Accessories

Siemens 808D controller

Collet chuck kits

Mill arbors

Machine vice

Coolant system

Lubricating system

Draw bar

Operate tools

Optional Accessories

GSK980 controller

KND1000M controller

Fanuc oi MD controller

4th axis
