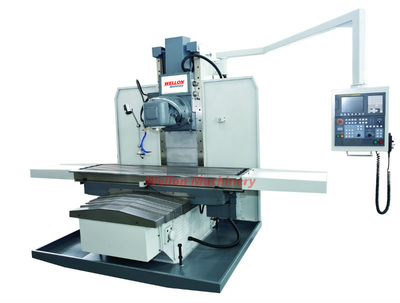

1. Machine is produced by high quality cast iron, with high rigidity, precision retaining ability.
2. Big table load, wide machining range.
3.Vertical spindle and horizontal spindle can be changed easily. Universal swivel head can be swiveled and adjusted by any degrees, a fixture processing can finish multi angle and multi dimensional machine parts.
4. hardened and grounded guideway on X,Y,Z. Plastic processing on X,Y , it has the features of high strength, low friction.
5. Timing lubrication system.
6. Easy to operate, suitable for precision machining large and medium sized machine parts .Â
| Quantity: | |
|---|---|
Product Description
Specifications | Units | |
table travel(X,Y) | mm | 1500X550 |
table size | mm | 2100X500 |
number/width/distance of T-slot | mm | 4-20-100 |
max.load of table | kg | 2000 |
distance from vertical spindle nose to table surface | mm | 0-650 |
distance from horizontal spindle nose to table surface | mm | 8-660 |
distance from spindle axis to vertical guideway | mm | 610 |
distance from spindle axis to table surface | m/min | 8-660 |
X,Y feed speed | mm/min | 2.5-3000 |
X,Y rapid feed speed | mm/min | 6000 |
Z feed speed | mm/min | 2.5-2500 |
Z rapid feed speed | mm/min | 3000 |
taper of spindle | ISO50(7:24) | |
spindle speed range | rpm | 35-1345(12 steps) |
spindle motor power | kw | 7.5 |
feed motor power | kw | 1.4(X) 2.5(Y,Z) |
coolant motor power | w | 550 |
positioning accuracy | mm | ±0.04 |
repeat positioning accuracy | mm | 0.02 |
overall dimension | mm | 3650X2380X2750 |
machine net weight | kg | 7300 |
Standard Accessories
Interface RS-232
Flood coolant and pump
Central lubrication automatic system
Tool for operation
Instructions for use
Optional Accessories
CNC FANUC control
Chips collection
