XK7130A

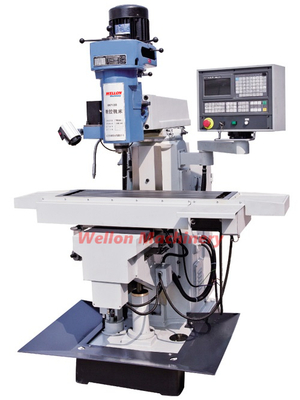

This CNC Milling Machine is composed of the base, table, column, milling machine head, rise-and-fall mechanism, lubrication system, cooling system and electric system. The electric cabinet is installed on the rear face of the column, the electric operation panel is hanged in the front of the right side of the column, operation is convenient.
Can be used for milling, boring, drilling. The machine is suitable to perform various procedures such as plane surface, inclined surface, slot, gears, spline and grooves. It's therefore to meet maintenance and manufacture in various enterprises, especially for manufacturing tools, fixtures and dies, etc.

  • XK7130A
  • Wellon
Quantity:

Product Description

Specification

Unit

XK7130A

X-axis travel

mm

460

Y-axis travel

mm

210

Z-axis travel

mm

360

Spindle nose to table

mm

120-480

Spindle center to column guide-way face

mm

200-500

High speed feeding of X,Y axis

mm/min

3000

Feeding speed

mm/min

1-2000

Size of working table

mm

1000×280

Max.loading capacity of rotary table

mm

100

T-slot NO./width/distance


3×14×63

Spindle speed range/step

r/min

66-4540/16steps

Main motor rated  power

Kw

2.2(3HP)

Spindle hole taper


7:24 ISO30

N.W

KG

1300

Overall dimension

mm

1540×1340×2130

Standard Accessories

Siemens 808D controller

Collet chuck kits

Drill chuck

Reduction sleeve

Machine vice

Coolant system

Lubricating system

Draw bar

Operate tools

Optional Accessories

GSK980 controller

Fanuc oi MD controller

Variable spindle speed

Air draw bar

4th axis
