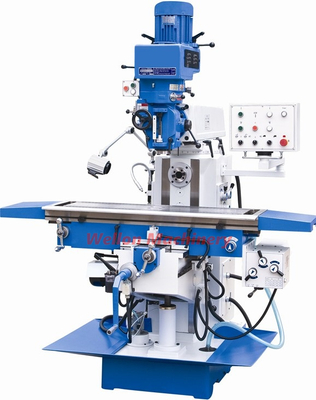

X6332B X6332C

1. Flexible, multi-function of milling, drilling and tapping .
2. Easy to operate, convenient maintenance
3. High speed milling head , high precision, swivel 90°, flexible processing.
4.Cast iron after artificial aging treatment,high precision,long service life
5.Belt drive, low-noise, Fast speed
6.Hardening treatment.
7.Equipped with manual lubricating device, the lubrication on the lead screw and guideway
8.Milling head from taiwan, 5HP-ISO40-STEP pulley
9.X, Y-axis auto-feeding, Z-AXIS with lifting motor table.

  • X6332B X6332C
  • Wellon
Quantity:

Product Description

Item

X6332B

X6332C

Spindle taper

ISO40(V)  ISO40(H)

ISO40(V)  ISO40(H)

Diameter of quill

120mm

120mm

Distance from spindle to table

200-600mm

200-600mm

Distance from horizontal spindle to table

0-400mm

0-400mm

Distance from spindle to column

200-700mm

200-700mm

Spindle speeds

70-3620(V),

60-1350(H)

70-3620(V),

60-1350(H)

Spindle travel

127mm

127mm

Feeding of quill

(3step)0.04  0.08  0.15

(3step)0.04  0.08  0.15

Head swivel angle

±45°

±45°

Table size

1250×320mm

1250×320mm

Table travel(Horizontal/Cross/Vertical)

750/300/400mm

950/300/400mm

Feeding range of longitudinal.cross travel

22-555mm/min

22-555mm/min

X,Y-axis Rapid feed speed

1080mm/min

1080mm/min

Z-axis rapid feed speed

590mm/min

590mm/min

Z-axis motor power

750W

750W

Max.weight of workpiece

300kg

300kg

T-slot Number/width/distance

3/14mm/70mm

3/14mm/70mm

Horse power for main motor

5HP(V)  2.2kw(H)

5HP(V)  2.2kw(H)

X,Y axis driving motor

750W

750W

Overall dimension

1720×1520×2225mm

1720×1520×2225mm

N.W./G.W.

1400/1550kg

1500/1650kg

Standard Accessories

Drill chuck

Collet chuck kits

Working lamp

Coolant system

Reduction Sleeve

Mill arbors

Draw bar

Machine vice

Chip tray

Some tools

Optional Accessories

3-Axis Digital readout

Universal Dividing Head

Rotary table

Air draw bar

Variable spindle speed

58 pcs Clamping kits

Slotting head
