X6135

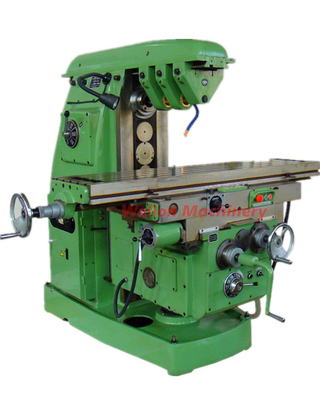

The Universal Rotary-head Knee-type milling machine X6135 is widely used in the machining workshop, with optional accessories as vertical milling head,dividing head, rotary table, machine vice, milling chuck, etc.

  • X6135
  • Wellon
Quantity:

Product Description

Item

X6135

 worktable area(width*length):

 350*1600mm or   350*2000mm

 Max. longitudinal travel(manual)/(power)

 1000/900mm or 1400/1300mm

 Max. Transversal travel(manual)/(power)

 300/280mm

 Max. vertical travel(manual)/(power)

 430/400mm

 T-slots(number of slot-width*pitch)

 5-18*65mm

Distance from center of horizontal spindle to table

 30-430mm

 Distance from table center to vertical guide way

 250-530mm

Distance from horizontal spindle center to the ram

 155mm

 Horizontal Spindle taper

 7:24/ISO50

 Max.swivel angle of table

 ±45°

 Spindle speed range

 35-700r/min

 Table feed range (longitudinal/cross)

 15-750mm/min

 Table feed range(vertical)

 5-250mm/min

 Fast moving of table(longitudinal cross/vertical)

 1920/640mm/min

 Main Power

 7.5KW

 Feed motor

 1.9/1.3kw

 Motor of coolant

 0.125kw

 Packing Size(L×W×H)

 2190×2230×2140mm

 Net weight

 2800/3000kg

Standard Accessories

Mill chuck kits

Milling arbor (3sets)32#,27#,22#

Wrench,

Draw bars(2),

Oil gun

Foundation screw

Optional Accessories

Vertical milling head

Dividing head

Machine vice

Rotary table

Digital readout
