XL6430C
Classification:
keyword:
universal milling machine
- Details
- Standard accessories
- Optional accessories
-
- 商品名称: XL6430C
1. X Y Z auto feed by Servo Motor 2. Universal swivel head can mill any angle surface through front half-sphere 3. Horizontal spindle with large speed range, suitable for low-speed heavy load process and high-speed precision process 4. 3-axis Digital Readout, Rotary table, Protective cover are available as optional
Technical parameter:
Specifications
Unit
XL6430C
Table size
mm
1370*300
T-slots(NO./width/pitch)
mm
3*14*80
Max table travel - X/Y/Z
mm
1000/380/400
Spindle taper
-
7:24 ISO40
Distance between spindle center line and table surface
mm
75-475
Distance between spindle nose and table surface
mm
260-660
Distance from horizontal spindle center line to arm surface
mm
180
Spindle speed range
r.p.m
(V)11 steps 45-1660
(H)12 steps 35-1500
Arm travel
mm
400
Table feed(X/Y/Z)
mm/min
No finite
Table rapid speed
1000/1000/750
Main motor power
Kw
2.2(V)/ 3(H)
Torque of X/Y/Z axis AC servo motor
Nm
10
Cooling pump motor power
W
40
Flow of cooling pump
L/m
12
Overall size
mm
1820*1680*1860
Net weight
Kg
1950
-
Draw bar

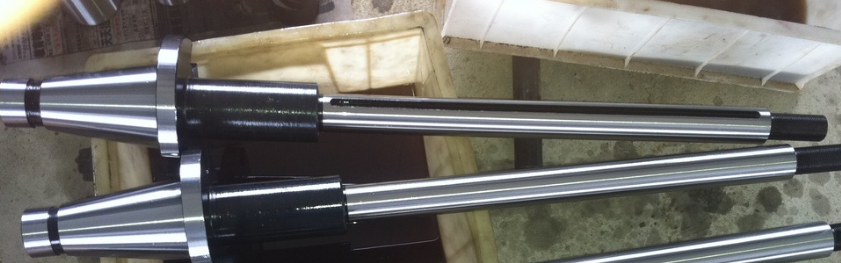

Mill arbors
Coolant device

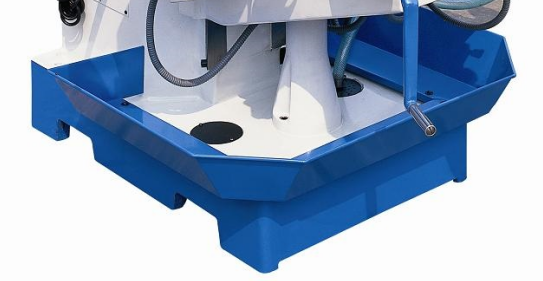

Oil tray
Universal mill head
Automatic central lubrication
Work lamp
Mill chuck set
-
Horizontal & vertical rotary table
Clamping kit set 58-pcs
Universal dividing head F11-160A
Machine vice 160mm
3-axis digital readout
