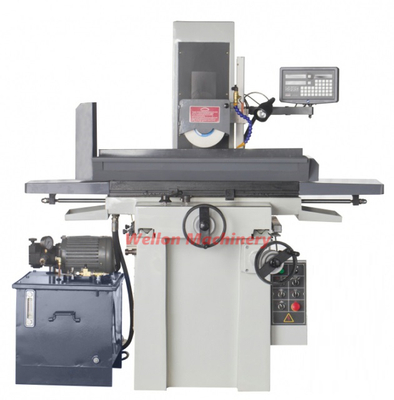

Product Description
Model | Units | |
Table Size (L×W) | mm | 540*250 |
table travel | mm | 560x260 |
speed of working table | m/min | 3-20 |
Distance From Spindle to table | mm | 450 |
Table Slide way | / | V-type rail with Steel-ball |
V-type rail with Steel-ball | kg | 200 |
Number of T -Slot | mm*n | 14*1 |
Cross Feed On Handwheel | mm | 0.02/Gra 2.5/rev |
Vertical Feed On Handwheel | mm | 0.01/Gra 1.25/rev |
Wheel Size | mm | 200*20*31.75 |
wheel Speeds | rpm | 2850 |
Spindle Motor | kw | 1.5 |
Hydraulic station motor | kw | 1.5 |
Rapid Up and down Motor | w | |
Working Pressure | Mpa | 3 |
Max.Capacity | L/min | 18 |
Fuel tank capacity | L | 80 |
Packing Size | mm | 1300*1620*1900 |
Net,Gross/weight | kg | 900/1000 |
Standard Accessories
Wheel flange
Balancing arbor
Wheel exactor
Coolant tank
Working lamp
Tool box and tools
Balance stand
Leveling wedge and bolt
Wheel dresser stand
Optional Accessories
Electro magnetic chuck
Balancing stand
Cooling and dust collector
Parallel wheel dresser
Dust collector
2 axis DRO
