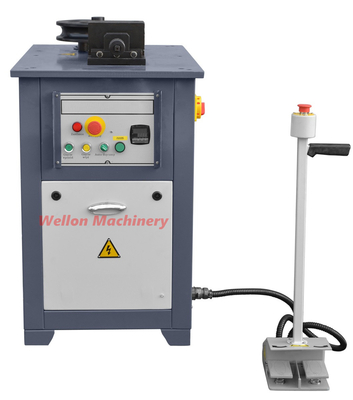

JGWG-40L

It is a motor-driven tool set for special purposes.
By utilizing the metal materials’ adaptable distortion, the tool can bend metal pipes into patterns in the shape of arcs.
It can be widely used in such fields as architecture, decoration, furnishing and municipal gardening.
The tool can be operated by pressing individual components and can simultaneously be operated semi-automatically
Under control of optical-electric code system, suitable for mass production.
Such striking features as simplicity in structure, easy to operate, energy-saving and highly efficient make the tool ideal for pipe bending.

  • JGWG-40L
  • WELLON
Quantity:

Product Description

JGWG-40L

External Radius

Bending Radius

Thickness of Pipe

1

12

48

≥1.5

2

14

56

≥1.5

3

15

45

≥1.5

4

15

60

≥1.5

5

16

48

≥1.5

6

16

64

≥1.5

7

17

51

≥1.5

8

17

68

≥1.5

9

18

54

≥1.5

10

18

72

≥1.5

11

19

57

≥1.5

12

19

76

≥1.5

13

20

60

≥1.5

14

20

80

≥1.5

15

22

66

≥2

16

22

88

≥2

17

24

72

≥2

18

24

96

≥2

19

25

75

≥2

20

25

100

≥2

21

26

78

2.5-3.5

22

26

104

2.5-3.5

23

28

84

2.5-3.5

24

28

112

2.5-3.5

25

30

90

2.5-3.5

26

30

120

2.5-3.5

27

32

96

2.5-3.5

28

32

128

2.5-3.5

29

34

102

2.5-3.5

30

34

136

2.5-3.5

31

35

105

2.5-3.5

32

35

140

2.5-3.5

33

37

111

2.5-3.5

34

37

148

2.5-3.5

35

38

114

2.5-3.5

36

38

152

2.5-3.5

37

40

120

2.5-3.5

38

40

160

2.5-3.5

MODEL

JGWG-40L

Max sizes of stocks to be processed(mm)

ROUND

Φ40X2.5

SQUARE

40X40X2

Max bending angle

≤180

Output rotational speed of main shaft(r/min)

11

Specifications of motor

Power

3kw

Voltage

220/380 3PH

Frequency

50

External Size(LxWxH)

820x550x1030mm

Packing Size(LxWxH)

940x620x1130mm

Net Weight

380kg

Gross Weight

428kg
