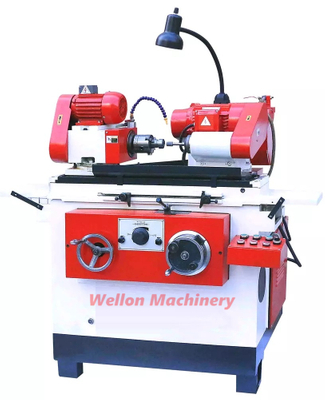

GD-300A

Taper surface, tapered face. Tooling way may be top, three claws chuck, spring card head
and special jig realized. Apply to instrument, automobile, mechanical and electrical,
bearings, textile, ship, sewing machines, tools, etc processing small parts.
Themachine working longitudinal mobile has hydraulic and manual. The grinding wheel
frame and head frame all can turn. Hydraulic system USES the good performance of gear.
The machine suitable for tools, maintence workshop and small and medium-sized batch
production workshop for the machine according to the top is divided into 300mm.
Hydraulic system precision cylindrical surface excircle grinder machine.

  • GD-300A
  • Wellon
Quantity:

Product Description

Model

GD-300A

grinding diameter

2-80 mm

center grinding length

300mm

center height

115mm

max workpiece weight

10kg

worktable speed

0.1-4m/min

wheel peripheral velocity

35m/sec

max travel of table

340mm

swivel range of table

-3-+7degree

external wheel size

180-250mm*25*75mm

internal wheel spindle speed

1600r/min

tail center

no3 morse

motor power

2.34kw

machine size

1360*1240*1000

roundess

1.5/2.5(0/d,i/d)

surface roughness

RA0.25/0.63(o/d,i/d)

uniformanity of dia in longitudinal section

5/8UM(O/D,I/D)

weight

1500kg

Standard Accessories

Coolant tank

Grinding wheel dresser

Wheel balancing mandrel

Driving dog

Carbide-tipped center

Support

Open type steady rest

Wheel flange

Chuck base

Internal grinding

3-jaw chuck

Quill shaft for internal grinding

Optional Accessories

Wheel balancing stand

Radius dresser

Closed type steady rest
