DW28CNCMTDR-A

Bending arm by servo, feeding, angle rotating by servo motor,It adopts imported special control system,With high stability.
Automatic bending, feeding and angle rotating
Air-cool system

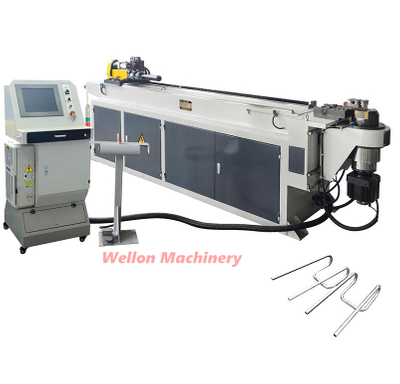

It is a CNC automatic bending machine, an efficient, economical automatic tube bender
Operation panel and CNC control system adopted, simple mode menu, accurate, fast, complete functions of hand-operated inching, quote setting. changing-program
Foot pedal and hand start button for safe start
The processing speed is fast and its procession is high. It is suitable for high speed
It has functions of manual, Inching, auto setting. changing-program, single step and so on.

  • DW28CNCMTDR-A
  • WELLON
Quantity:

Product Description

Main Technical Parameter

Unit

DW28CNCMTDR-A

Max. Bending Capacity

mm

28×2

Bending Radius Region

mm

10-50

Bending Angle Region

Degree

0-200

Feeding accuracy

mm

0.1

Feeding speed

m/sec

1.8

Bending accuracy

degree

0.1

Bending speed

Degree/sec

600

Angle accuracy

degree

0.1

Angle speed

Degree/sec

375

Effective Length Over Mandrel

mm

2000

Oil Pressure System Motor

kw

5.8
