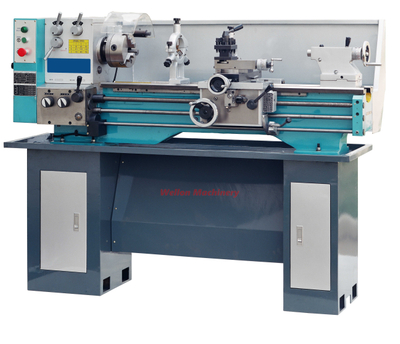

CZ1224 CZ1237

Swing Over Bed

mm

φ305

φ305

Swing Over Carriage

mm

φ173

φ173

Swing Over Gap

mm

φ440

φ440

Width of bed-way

mm

182

182

Distance Between Centers

mm

530

940

Spindle taper

M.T.5

M.T.5

Spindle bore

mm

φ36

φ36

Step of speed

12

12

Range of speed

rpm

50~1200

50~1200

Metric Thread

15kinds (0.25~7.5mm)

15kinds (0.25~7.5mm)

Inch Thread

40kinds(4~112T.P.I)

40kinds(4~112T.P.I)

Range of feed amount

mm/r

0.12~0.42

0.12~0.42

Diameter of lead screw

mm

φ22

φ22

Pitch of lead screw

3mm or 8T.P.I

3mm or 8T.P.I

Saddle Travel

mm

510

850

Cross Travel

 mm

150

150

Compound Travel

mm

90

90

Tail stock quill Travel

mm

100

100

Tail stock quill Diameter

 mm

φ32

φ32

Taper Of Center

mm

M.T.3

M.T.3

Motor Power

Kw

1.1(1.5HP)

1.1(1.5HP)

Motor For Coolant System Power

Kw

0.04(0.055HP)

0.04(0.055HP)

Machine  (L×W×H)

mm

1420×750×760

1780×750×760

Stand (L×W×H)

mm

400×370×700

400×370×700

Stand (L×W×H)

mm

300×370×700

300×370×700

Machine

Kg

365/415

385/435

Stand

Kg

60/65

60/65
