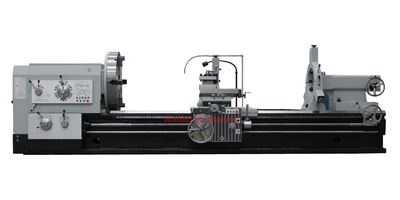

CW61125B

This lathe are suitable for turning internal and external cylindrical, conical and swing surfaces as well as various metric, inch, module and diametric pitch threads.They can also be used for broaching oil grooves and keyways. There are also following features:
1. Box type internal structure, of high rigidity , with hardened guideway. The precision is stable.And can carry out strong force cutting.
2. On apron,there is a device, operated by a single lever, used for rapid traverse of the carriage.
3. The saddle guideway is glued by ‘TSF’ soft belt wear resisting materials.
4. The top slide can be used independently for turning of short cone, in combination with longitudinal feeding, it can also turn long taper surface.
5. Bed width 755mm is optional

  • CW61125B
  • Wellon
Quantity:

Product Description

Specifications

unit

CW61125B

Max swing over bed

mm

1250

Max swing over carriage

mm

850

Center distance

mm

1500,2000 to 15000

Spindle bore and nose

mm

130  C15

Spindle taper

mm

MT6

Spindle speed and steps

r/min

CW:21 steps 3.15-315

CCW: 12 steps 5-400

4 jaw chuck diameter

mm

1000

Longitudinal feed and range

mm/r

56kinds 0.1-12

Traverse feed and range

mm/r

56kinds 0.05-6

Rapid moving speed

mm/min

3740

Lead screw pitch

mm

12

Metric thread

mm

44kinds 1-120

Inch thread

t/in

31kinds 28-3/8

Module thread

mm

45kinds 0.5-60

Diametral pitch thread

DP

30kinds 56-1

Cross slide travel

mm

520

Top rest travel

mm

300

Tool post


4 positions

Tool shrank size

mm

45X45

Tail stock sleeve dia

mm

140

Sleeve travel

mm

300

Sleeve taper


MT6

Main motor power

kW

22

Rapid feed motor power

kW

1.5

Coolant pump motor power

w

125

Machine width and height

mm

2000X1930

Machine length



1500

mm

4600

3000

mm

6100

4000

mm

7100

5000

mm

8100

Machine net weight



1500

kg

10650

3000

kg

11700

4000

kg

12700

5000

kg

13700

Max loading capacity



1500

kg

6000

3000

kg

6500

4000

kg

7000

5000

kg

7500

Standard Accessories

3-jaw chuck

4-station tool holder

steady rest

follow rest

dead centers

reducing sleeve

coolant system

halogen work lamp

operating tools

Operator Manual.

Optional Accessories

4-jaw chuck

Digital readout

Taper turning attachment

chuck guard

Live center
