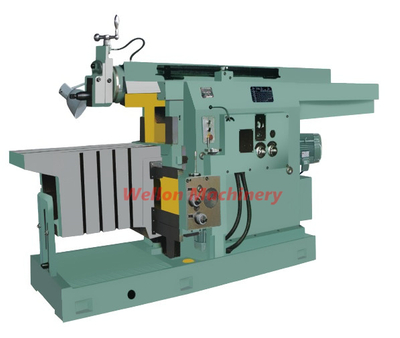

BY60100

1.The machine is used in a variety of cutting and forming flat surface, suitable for single and small batch production.
2.Bed and other key parts of tempering, vibration aging, super audio quenching heat treatment process, makes the machine more stable accuracy, longer service life.
3.The principal cutting movement and feed movement are the hydraulic transmission, stepless speed regulation, with hydraulic overload protection device, smooth rotation, little overrun, start and stop is flexible and reliable, rigidity, cutting force, high directional accuracy, low temperature, small thermal deformation and precision stability, and can apply to the work of a strong and continuous cutting.
4.The machine tool can achieve rapid horizontal and vertical movement, turret with automatic tool lifting mechanism, machine tool handles, easy to operate, high degree of automation

  • BY60100
  • WELLON
Quantity:

Product Description

Specification

Units

BY60100

Max. shaping length

mm

1000

Cutting speed of ram(step less)

Mm/min

3-44

Distance from lower edge of ram to upper surface of table

mm

80-400

Max. cutting force

N

28000

Max. travel of tool post

mm

160

Maximum size of tool planer(W*T)

mm

30×45

Upper working surface of table(L x W)

mm

1000×500

T-slot width of upper table surface

mm

22

Max. horizontal travel of table

mm

800

Horizontal feed of table (per reciprocating stroke of ram, step less)

mm

0.25-5

Main motor power

KW

7.5

Motor for rapid table movement

KW

0.75

Overall dimensions(L x W x H)

mm

3615×1574×1760

N/G.W

kg

4200/4350
